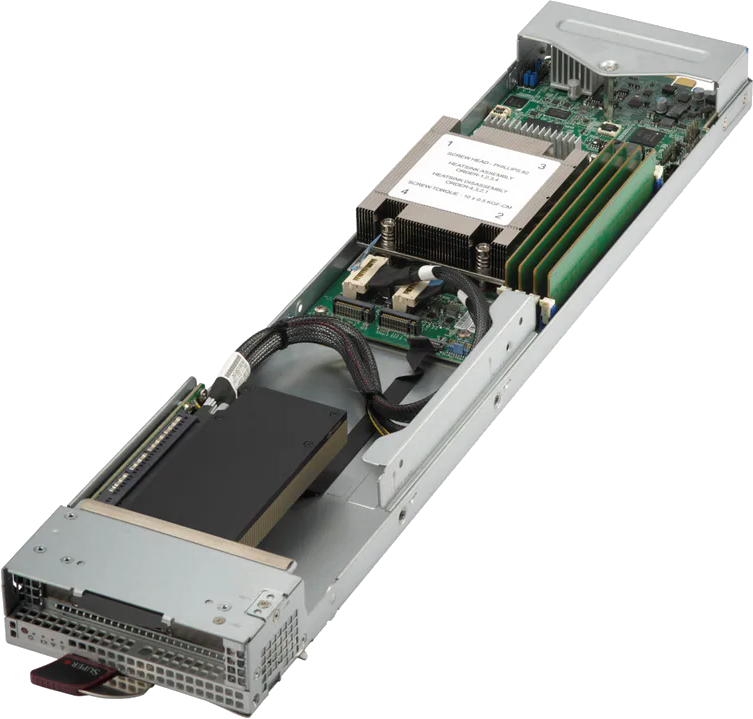

MicroBlade MBA-315R-1G
- Form Factor MicroBlade Sled
- Supported CPUs AMD EPYC 4004
- AMD EPYC 4005
- CPU Socket 1
-
Max Supported Memory
192 GB DDR5
- Drive Bays 2 optional U.2 NVMe Hot swap 2.5" Drive Bays
-
Power Supply
Key Applications
- Cloud Computing
- AI Inference
- VDI, Video Streaming, Web Cache, CDN
- Web Hosting, Dedicated Hosting
- Online Gaming
- E-commerce
Key Features

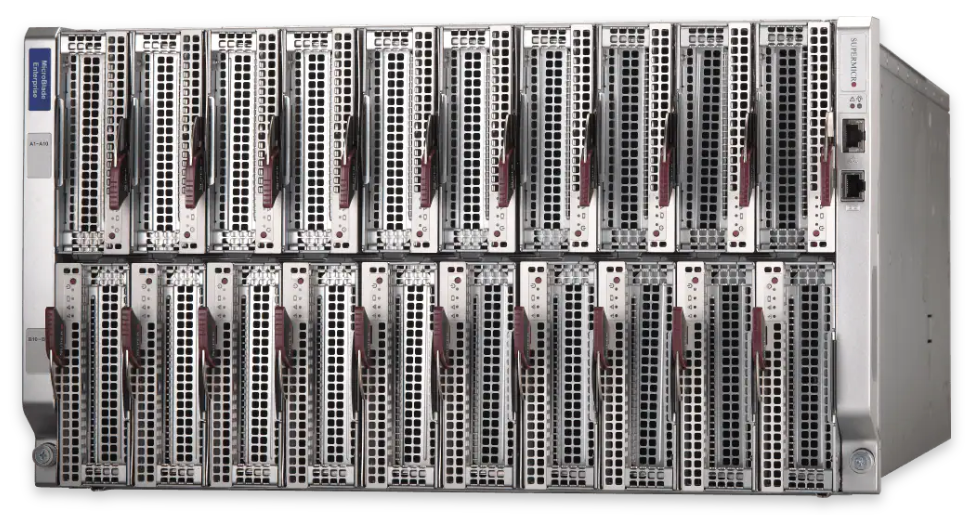

- Up to 160 servers and 16 Ethernet switches per 48U rack
- Up to 170W CPU with air cooling
- Up to 1 PCIe 5.0 x16 single-wide, FHHL GPU or network card
- Up to 4 NVMe SSDs
- Dual port 10GbE NIC included on the motherboard
- No cable between each server and two integrated Ethernet switches
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 16
- CPU Manufacturer AMD
- TDP 170 W
- LAN 2 RJ45 10GbE RJ45 10 GbE
- M.2 2 M.2 NVMe slots
- PCI-e 1 PCIe 5.0 x16
- Dimensions 125.48 mm Width
- Dimensions 30.48 mm Height
- Dimensions 589.28 mm Depth
- Product Model MBA-315R-1G
- NVMe 2
- USB System dependent
- Video Output Aspeed AST2500 BMC VGA
- DIMM Type UDIMM
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
